PVC SYSTEM GEALAN S 9000 HST

The new HST-based system With 9000 platform meets all the technical and visual demands of the latest generation of the sliding system. Thanks to the perfect design, large elements can move almost without the use of force, and large glass surfaces provide efficient lighting interior design, how when the door is closed, and when they are open. Almost invisible threshold eliminates the division between the outer and inner space.

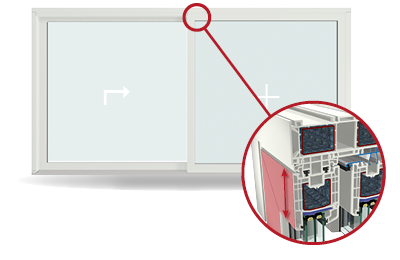

Profile characteristics
GEALAN S 9000 HST

Installation depth:

190 mm

Number of glasses:

Number of chambers:

Uw value:

1,3 Wm2/K

Number of gaskets:

Reinforcement:

1,5 - 2 mm

Hardware

Product features

Excellent thermal insulation

The new S 9000 lift-sliding door, through innovative solutions, already in the basic version, shows very good thermal insulation of Uf 1.3 W/(m²·K).

3-layer glass

In the new system, 3-layer glass up to 52 mm (STV® 54 mm) thick can be used without problems.

Design:

Modern design, narrow sash and innovative glazing profiles result in a higher proportion of glass.

Security

With GU fittings, we achieve a high degree of safety.

GEALAN decor and acrylcolor® surface

Podizno-sliding door with a demonstrated GEALAN decor and acrylcolor® high-quality processing of the surface ensure longevity, and also offer a variety of opportunities for design.

Versatile

Various possibilities to shape and numerous schemes opening.

GEALAN S 9000 HST is a modern lift-and-slide system that combines cutting-edge technology, exceptional thermal insulation and modern design. This system enables the creation of large glass surfaces that provide maximum natural light, while an almost invisible threshold creates a seamless transition between indoor and outdoor spaces.

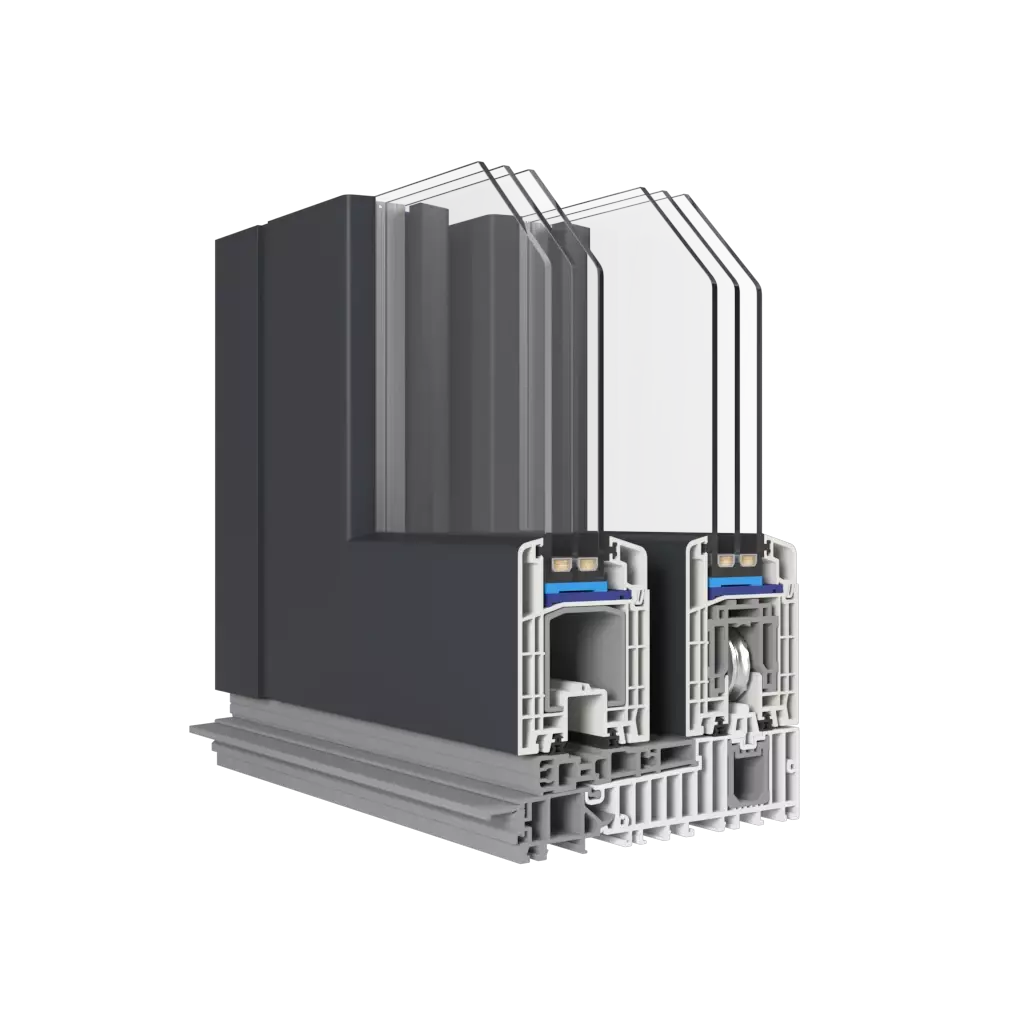

Thanks to the six-chamber profile construction and a depth of up to 190 mm, the HST S 9000 provides exceptional stability and excellent thermal insulation - the Uf value reaches around 1.3 W/(m²·K). The triple sealing system and the possibility of installing triple glazing up to 52 mm guarantee a high level of energy efficiency and sound insulation up to 45 dB.

The innovative STV® dry glass bonding technology further increases the rigidity of the sash, enabling the production of large and stable elements that move easily and quietly. Thanks to the modern profile geometry with 15° slopes and narrow visible widths, the system fits perfectly into the architectural trends of contemporary buildings.

GEALAN S 9000 HST is available in a variety of decors and colors, including the weather- and scratch-resistant GEALAN-acrylcolor® acrylic surfaces. The combination of functionality, aesthetics and energy efficiency makes this system the ideal solution for modern homes, panoramic glass walls and elegant terrace exits.

GLASS

Classic

With classic glass, a symmetrical and balanced appearance is already achieved in the standard version thanks to a narrow wing with a width of only 100 mm, which allows greater penetration of light into the space and an elegant, minimalist appearance of the entire construction.

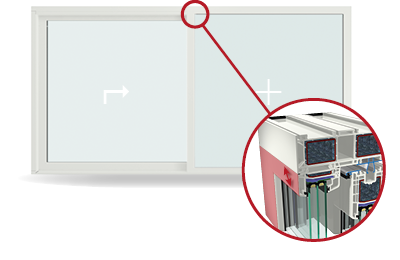

Oriented design

With this special variant, the standard sash in the fixed part is replaced with a narrower glazing profile. This reduces the front width in the fixed part by more than 50% with unchanged thermal insulation.

OPENING DIAGRAMS

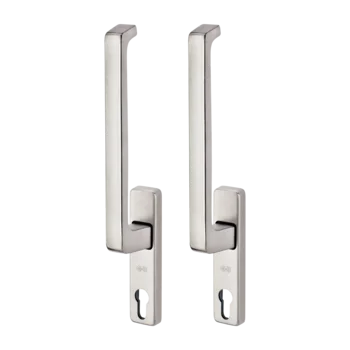

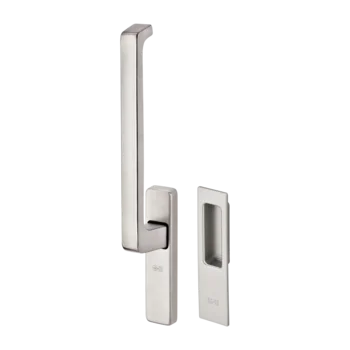

NIMBLE HANDLES - GU

GU rotary handles are made of high-quality aluminum and stainless steel for reliable, ergonomic and aesthetically pleasing control of HST window tilt-and-slide systems.

In the offer we have:

premium handles model “CONDUCTOR”,
security handles with lock and key.

Thanks to a large choice of model, color, and final processing, GU handles easily adapting to the modern architectural requirements and design of the interior.

ALUMINUM COVERS

Perfect combination of aesthetics and endurance – the aluminum cover provides PVC window the perfect balance of modern design and functionality.
By combining two high material, this system offers numerous advantages:

A modern and elegant appearance that fits perfectly in modern architecture.
The possibility of selection of shades from a wide range of color, which achieves a complete cosmetic compliance with fasadom and interior.
Increased resistance to external influences like UV radiation, moisture and temperaturnih change.
Increased longevity and stability thanks to the remarkable tough aluminum.

Thanks to the solid aluminum on the outside and the thermal efficiency of PVC on the inside, this system combines the best features of both materials. Aluminum provides exceptional resistance to external conditions and a long-lasting aesthetic appearance, while the PVC core ensures high thermal and sound insulation. The result is a window that combines modern design, durability and energy efficiency, providing maximum comfort and lasting value to any building.
