MasterLine 8 – Elegance, high isolation and minimalistic design

Reynaers MasterLine 8 represents a new generation of aluminum windows and doors that combine outstanding performance, modern design and maximum flexibility. The system was developed for projects that require superior energy efficiency, high level of comfort and long-term reliability — ideal for contemporary architecture, luxury residences and business facilities.
Enjoy the top results, even in the most difficult weather conditions.

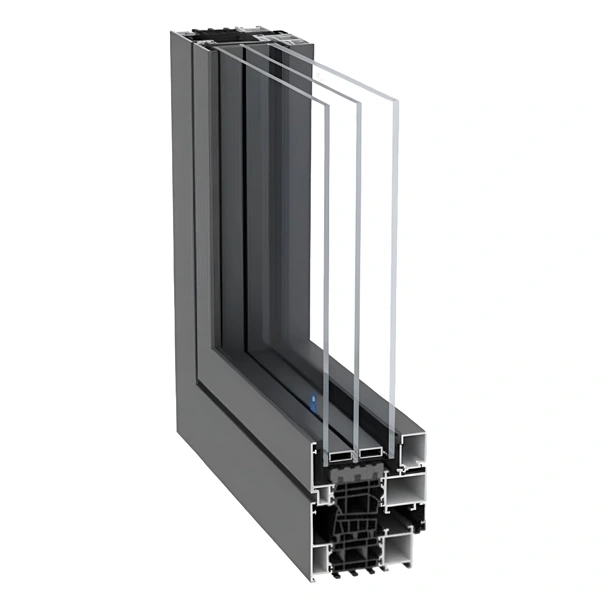

Profile characteristics
MasterLine 8

Installation depth:

77 mm

Number of glasses:

3

Wind resistance:

Class C4 (1600Pa)

Uw value:

0,88 Wm2/K

Water permeability:

Class E900 (900Pa)

Acoustics:

44(-2;-4)

Hardware

Sobinco

Product features

Top energy efficiency

MasterLine 8 offers an extremely advanced insulation, available in several versions: the Standard, High Insulation (HI), the High Insulation+ (HI+) and PassivHaus.
With the possibility of achieving the Uh values to 1,0 W/m2K, this system is ranked in the top energy efficient aluminum solutions, suitable for passive house.

Modern design in several style variants

MasterLine 8 allows complete freedom in the design, thanks to the three cosmetic lines:
Functional – minimalistic, flat and clean profiles
Renaissance – a classic look for the traditional architecture
Deco – elegant profiles with an apostrophe details

Thin visible lines allow for a larger surface of the glass and more natural light, with contemporary and luxurious visual impression.

Endurance

Thanks to its robust construction, MasterLine 8 easily supports large window and door formats, without compromising on stability.
Advantages: minimal maintenance, weather resistance, long service life and compatibility with advanced hardware systems.
This makes it ideal for buildings with larger glass surfaces and modern architectural requirements.

Security

MasterLine 8 supports burglary systems up to RC2 and RC3 classes, and advanced sealing and the ability to install thicker glass ensure a high level of sound insulation — perfect for busy urban environments.

REYNAERS Bicolour Polish

It provides frames in almost any color and also the type of paint (metalic, matte, glossy wood look, etc.), the ability to choose between powder coating or anodizing the elements.

Maximum flexibility and application

The system is available in various types of opening:

  • single and double frame windows
  • tilt-turn systems (tilt/tilt-turn)
  • fixed elements
  • balcony and entrance doors
  • systems of large dimension

Thanks to its modularity, MasterLine 8 allows the combination of different insulation and visual variants within the same project.

SOBINCO HARDWARE

shackle visible

Visible fittings

Sobinco Chrono visible hinges designed for high performance, durability and a clean architectural aesthetics. Made of top-quality materials, these hinges provide smooth and stable movement of the wings, even with large or heavy window. Visible Chrono system allows simple installation, long-term reliability and exceptional resistance to wear. With an elegant and modern appearance, visible Chrono hinges, completing the contemporary the profiles, providing superior functionality, precise possibilities of configuration and proven high level of security

Chrono chains are available in Standard, Plus and Safe RC3/4 versions.
Chrono is available for gutter framework of 14/18 mm and 10/14 mm.
Made from high-quality, nekorozivnih materials.
Quick installation: tightness in the euro-groove.
A simple adjustment.
High capacity:
− weight wings to 130 kg (standard Chrono hinges): RAL certificate.
− weight wings to 300 pounds (Chrono hinges for jednokrilne windows).
Chrono Safe is certified by SKG institute with 2 SKG stars

Hidden fittings

Sobinco Chrono hidden hinges offer a minimalist and elegant solution where design and aesthetics in the first place. Completely hidden within the window frame, hinges create a seamless, continuous appearance as the inside and the outside. Although they are invisible, hidden Chrono system provides the same high level of endurance, heavy duty and smooth work which is Sobinco known. Hidden construction also improves insulation and security, with easier cleaning and maintenance. Ideal for a slim, modern profile as Reynaers SlimLine 38, hidden Chrono hinges combine maximum performance with clean and sophisticated design.

Hidden wark offer followingće advantages:
  • Hidden hinges have the advantage that they are completely invisible when the window is closed.
  • The possibility of using a narrow profile frame: the aesthetic effect is better, and the glass surface is greater.
  • Cleaning window framework is simpler because all the angles are easily available.
  • They're not dependent on the color, which reduces the need for large inventories and increases the cost-effectiveness.
  • No need to remove the inner washer tire during mounting hinges, which achieves better sound, our wind - and vodonepropusnost.
  • Completely hidden hinges can be damaged during transport, installation or other work on the building.
  Hidden hinges are available in two versions:
  • Chrono Invision Pro: completely hidden stezljive hinges that carry the weight of the wings to 170 pounds.
  • Chrono Invision Go: completely hidden stezljive hinges that carry the weight of the wings up to 90 pounds.
Levers (link arms):
  • Works stable and proper functioning of the window, depending on the width of the wings, are available 2 or 3 sized bars. The two biggest levers have a pre-closing prihvatnik which facilitates the closure of the kipnog position.
  • Lever is equipped with a system against attack closure (click system) to prevent accidentally closing the window from the kipnog position.
  • For easier mounting, lever is held in otklopnom position using a safety pin which was removed at the first use.
  • Special samobušeći screw allows for tight and dimenzionalno accurately attaching that the levers.
All parts made from materials resilient to corrosion.

OPENING DIAGRAMS

HANDLES EDGE and the HORIZON

EDGE

Sobinco Edge handles feature a modern, minimalist design that emphasizes straight lines and an elegant look. Thanks to their slim profile and precise workmanship, Edge handles fit perfectly into modern aluminum windows and doors, especially in buildings that require clean architectural details.

• Extremely comfortable grip and ergonomic shape
• Excellent combination of aesthetics and functionality
• Available in a wide range of finishes: more than 450 RAL colors, matt/glossy, anodizing, textured and stainless steel variants
• Suitable for windows, doors and sliding systems
• High quality materials and long-lasting resistance

Edge handles are the perfect choice for architects and users who are looking for a modern, clean and timeless look.

HORIZON

Sobinco Horizon the handles are made softer lines and a subtle curved design that provides luxury look. Horizon is ideal for projects where looking for a blend of modern aesthetics and comfort, with a pronounced sense of elegance.

• Sophisticated, slightly curved lines
• Very comfortable to use thanks to ergonomic design
• Available in the same finishes as Edge (RAL, anodized, textured, stainless steel look)
• Coordinated with other Sobinco elements such as door handles and handles for sliding systems
• Made of corrosion-resistant materials

Horizon handlebars entries softer visual note, and while keeping superior mechanical stability and longevity.

FINAL PROCESSING


Your style deserves to distinguish itself, even in the smallest of details. That's why we offer over 900 RAL color in different final obradama how we created the perfect final touch for your aluminum carpentry.

Combine your favorite color with metallic, anodized, matte, glossy, wood imitation or even a special Structure finish that requires minimal maintenance and is scratch resistant. We also offer the “dual color” option, i.e. the outside and inside of the window can be in different shades.

With an inspiring selection, you can choose from the latest color trends as well as timeless classics.

RAL palette Reynaers
STRUCTURAL COLOR

Combine your favorite color with clean aesthetics and ease of use. This coating provides more texture and is scratch-resistant, making it an ideal low-maintenance solution.

ANODIZED COLORS

The anodized finish puts the aluminum in the spotlight and gives it a different look depending on the time of day or the seasons. It also offers excellent protection against aggressive environments near the sea, swimming pools...

WOOD EFFECT

Our wood effect coatings combine the typical warm look of wooden windows with all the advantages of aluminum solutions. This is the ideal solution for buildings where the visual effect of wooden windows needs to be achieved.
